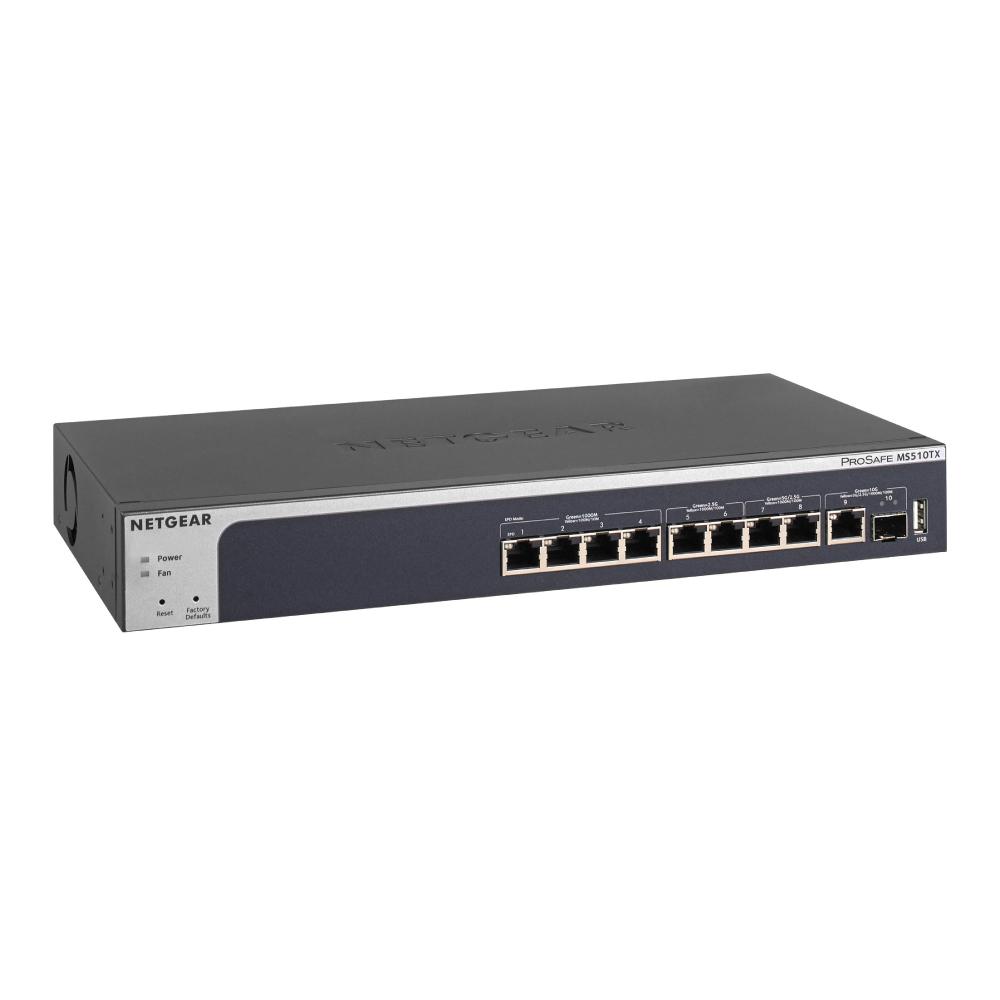

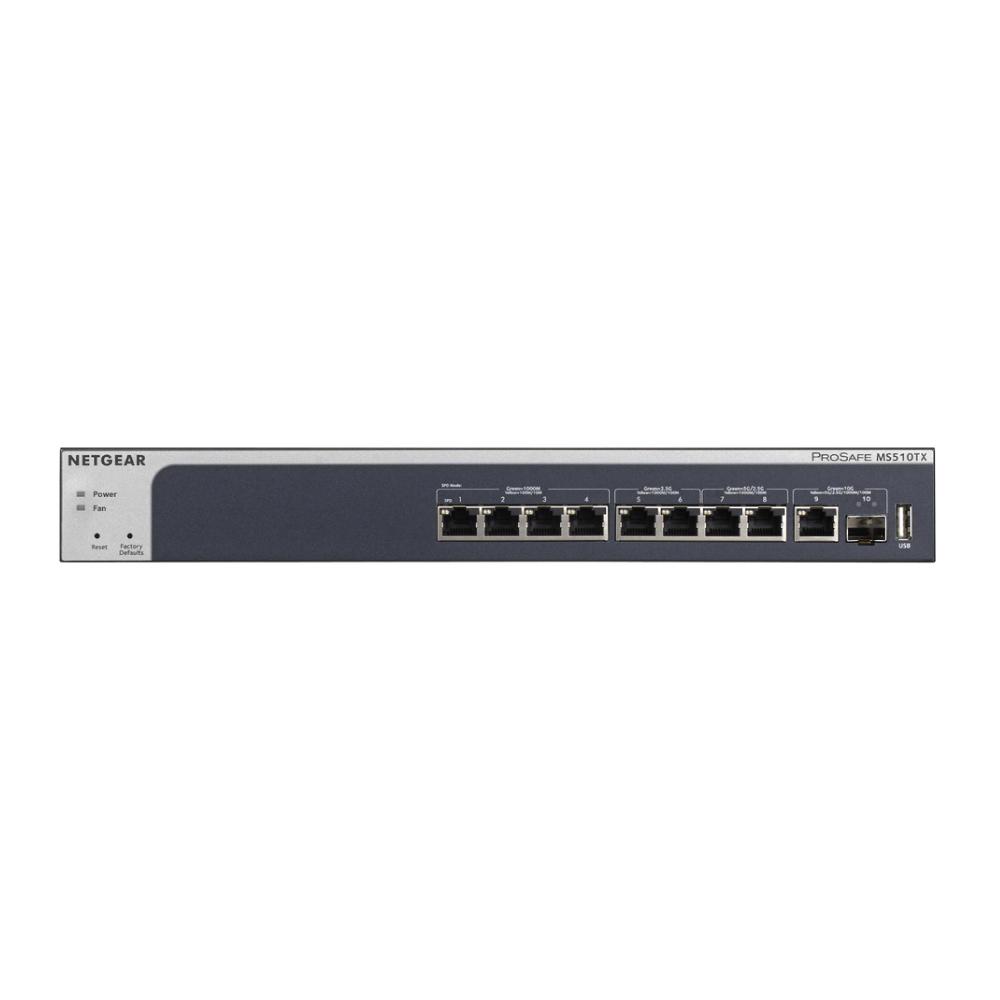

NETGEAR MS510TX 10-Port Multi-Gigabit/10G Smart Managed Pro Switch - with 1 x 10G SFP+

SKU: MS510TX-100EUS
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection

NETGEAR MS510TX 10-Port Multi-Gigabit/10G Smart Managed Pro Switch - with 1 x 10G SFP+

SKU: MS510TX-100EUS
Regular price $0.00
/
  • Rated for use in India
  • Local Service Center
  • Delivery options available

Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy Cat5E / Cat6 cables.

Features

Traffic Management

Auto Negotiation of speed and duplex modes

IEEE 802.3x Flow Control

Dynamic MAC address management

IEEE 802.1Q-based VLAN

Auto Voice VLAN

Auto Video VLAN (selected models)

VLAN routing (selected models)

QoS based on WRR, strict priority, or both

Port-based and IEEE 801.2p-based QoS

TCP/UDP-based QoS

DiffServ

IPv4 and IPv6-based QoS (selected models)

DSCP Support

Rate Limiting (ingress, or egress)

Link Aggregation and LACP

Switch Management

Web browser-based management GUI

Smart Control Center Software for multi-switch management

IP Access List

IPv6 Management

Configurable Management VLAN

SNMP v1/v2c and v3

Standard MIBs (RFC1213, RFC1643, and RFC1493)

RMON group 1, 2, 3, 9

Firmware Upgrade through Smart Control Center (TFTP)

Firmware download (to switch) and upload (to server) through TFTP/HTTP

Configuration and Image Upload (to PC) through HTTP

Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)Memory & FLASH log Syslog (server) System password protection

Memory & FLASH log

Syslog (server)

System password protection

Whisper Quiet

Whisper Quiet

A maximum of 27.3dB (GS716TP) even at full power and 25OC (77OF) ambient.

Room to Move

Room to Move

5 different ports available: 1G, 2.5G, 5G, 10G; SFP+ and Cooper

Secure Your Data

Secure Your Data

Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service Protection

Specifications

Product Number

MS510TX

2.5-Gigabit ports

2 (100M/1G/2.5G)

5-Gigabit ports

2 (100M/1G/2.5G/5G)

10-Gigabit copper ports

1 (100M/1G/2.5G/5G/10GBASE-T)

10-Gigabit fiber SFP+ ports

1 (1G/10GBASE-X SFP+)

Switching fabric

78 Gbps line rate

Number of PoE ports

N/A

PoE+ (802.3at)

N/A

Total PoE Power budget (Watts)

N/A

Max MAC entries

16K

Buffer size

3MB

VLAN (Number Supported)

256

VLAN routing

Yes

Dynamic VLAN assignment

Yes

MLD Snooping

Yes

Static route

Yes (32 IPv4 + 32 IPv6)

Host ARP table

Yes (512)

EEE

Yes

DoS Prevention

Yes

Internal/External

 Internal 100-240VAC 50-60Hz

Max consumption (Watts)

26.1W

FAN

1

Acoustic Noise Level @25C (dBA)

21

Operating Temperature

0° to 50° C

MTBF at 25° C

1,078,683 hrs

Physical Specifications

Dimensions (W x D x H) : 440 x 204 x 43 mm (17.3 x 8 x 1.7 in)

Weight : 2.61 kg (5.76 lb)

Warranty

Limited Lifetime Warranty
