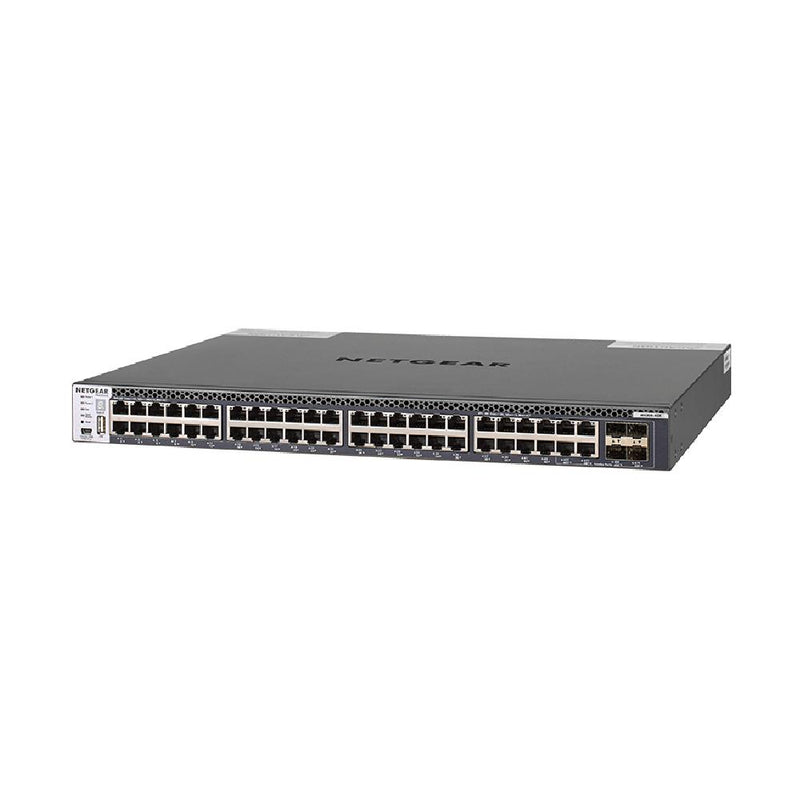

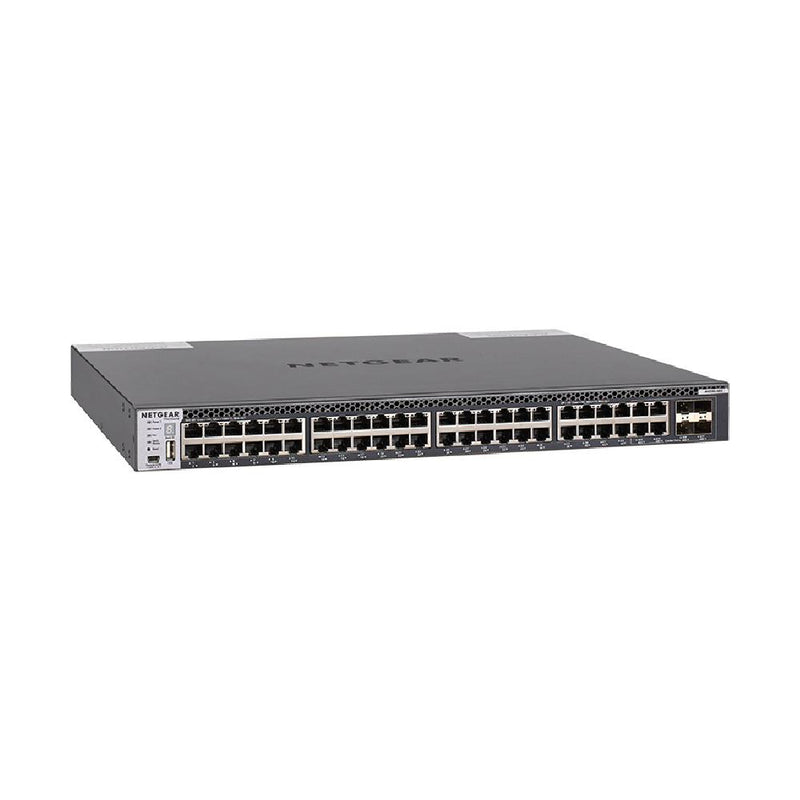

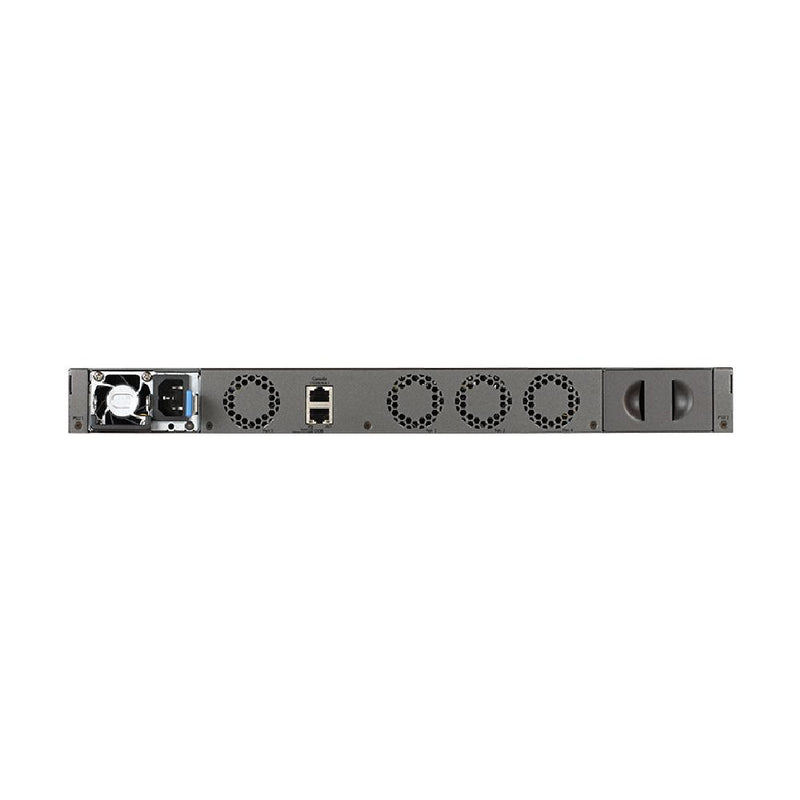

NETGEAR XSM4348CS 48-Port Fully Managed Switch M4300-48X, 48x, 10GBASE-T

SKU: XSM4348CS-100AJS
NETGEAR 48-Port Fully Managed Switch M4300-48X, 48x, 10GBASE-T, 4x SFP+, Stackable, ProSAFE Lifetime Protection (XSM4348CS)
NETGEAR 48-Port Fully Managed Switch M4300-48X, 48x, 10GBASE-T, 4x SFP+, Stackable, ProSAFE Lifetime Protection (XSM4348CS)
NETGEAR 48-Port Fully Managed Switch M4300-48X, 48x, 10GBASE-T, 4x SFP+, Stackable, ProSAFE Lifetime Protection (XSM4348CS)
NETGEAR 48-Port Fully Managed Switch M4300-48X, 48x, 10GBASE-T, 4x SFP+, Stackable, ProSAFE Lifetime Protection (XSM4348CS)

NETGEAR XSM4348CS 48-Port Fully Managed Switch M4300-48X, 48x, 10GBASE-T

SKU: XSM4348CS-100AJS
Regular price $0.00
/
  • Rated for use in India
  • Local Service Center
  • Delivery options available

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivaled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies.

Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard.

Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Features

Business Continuity Management

Full-width switches offer dual redundant, modular power supplies (select m4300 models)

High Availability (HA)

Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency

Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ Interoperability

Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency

Enables or disables ports based on link state of different ports

Advanced IPv4/IPv6 security

Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

Flexible Speeds

48 Copper ports have 100M/1G/10G speeds 48x10GBASE-T + 4X SFP+ Ports

Specifications

Product Number

XSM4348CS

Hardware Specifications

48 Ports RJ45 100M / 1G / 10G

4x Shared SFP+ 1G / 10G

2 Modular Bay with One (1) 250W Modular PSU included APS250W

960 Gbps Switching Fabric

Fixed Fan Front-to-Back 40db

Management Options : Ethernet: Out-of-band 1G port (Back)

Console: RJ45 RS232 (Back)

Console: Mini-USB (Front)

Storage: USB (Front)

Single-pane-of-glass NMS300 management platform with mass-configuration supportDual firmware image and configuration file for updates with minimum service interruption

Hardware Specifications

Table Sizes : 128K MAC 8k ARP / NDP

Up to 960 Gbps

Throughput up to 714 Mpps

Application Static Routing : 64v4 / 64v6 RIP: 512 OSPF: 512

Latency : 2.41µs 10G RJ45

1.51µs 10G SFP+

IP Multicast : 1,024 IPv4 / 512 IPv6

Multicast IGMP Membership : 2k IPv4 / IPv6

M4300 Series features : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM

VLANS: 4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 PoolsMix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)

Model Description

NETGEAR XSM4348CS 48-Port Fully Managed Switch M4300-48X, 48x, 10GBASE-T
