NETGEAR XSM4324S 24-Port Fully Managed Switch M4300-12X12F

SKU: XSM4324S-100AJS
/
  • Rated for use in India
  • Local Service Center
  • Delivery options available

The NETGEAR M4300 Switch Series delivers L2/L3/L4 and IPv4/IPv6 rich services for enterprise edge and SMB aggregation deployments with unrivaled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series.

Non-stop forwarding virtual chassis architectures provide advanced High Availability (HA) with hitless failover, that is, distributed link aggregation allows for load balancing and virtually zero downtime. License-free L3 feature set includes static routing, policy-based routing, RIP, VRRP, OSpiv as well as Multicast PIM routing. The NETGEAR M4300 Switch Series is ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

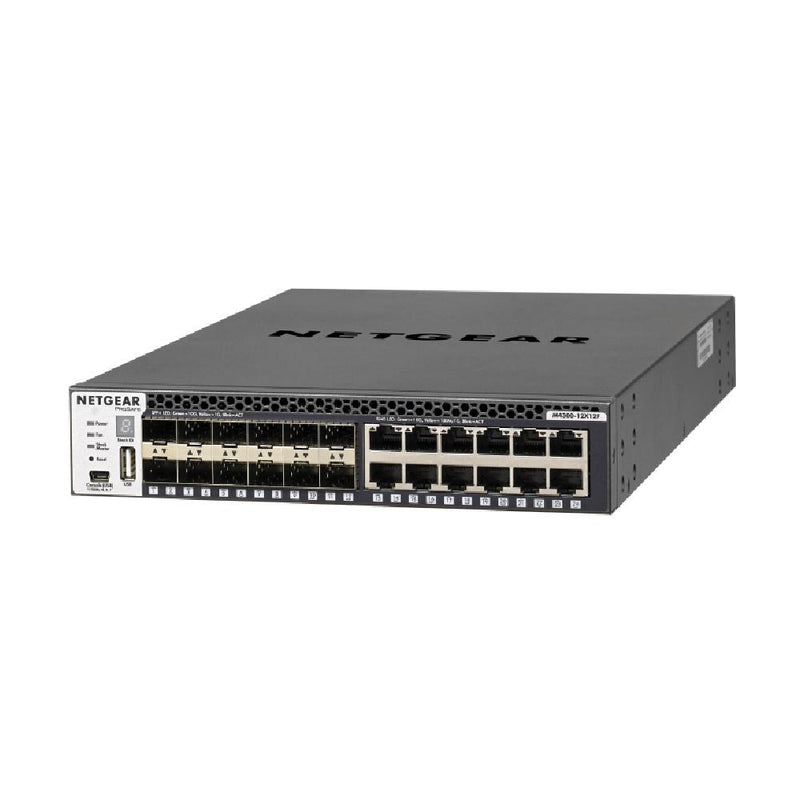

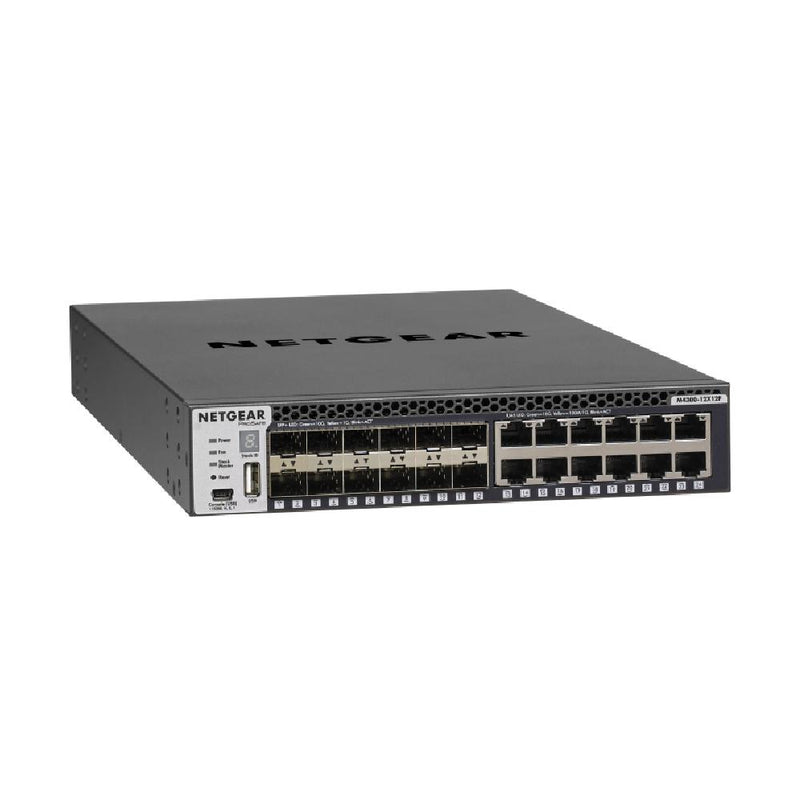

M4300-12X12F comes with 12 ports 10GBASE-T and 12 ports 10GBASE-X SFP+ in a half-width form factor. All 24 ports are independent and 1G backward compatible for progressive transition to 10G speeds. Ideal for server and storage aggregation: two half-width M4300 switches can be installed in a single rack space. M4300-12X12F is line-rate with 480Gbps fabric for SMB core applications as well as spine and leaf stacking architectures.

More from 10-Gigabit Switching
Netgear Gigabit Plus Switch Series (GS105PE)
Netgear Gigabit Plus Switch Series (GS105PE)
Netgear GS105PE 5-Port Gigabit Ethernet Plus PoE Pass-Throu/PoE Power Down Switch with 2-Port PoE out Ports
Netgear M4300-96X Fully Managed Modular Network Swtich
Netgear M4300-96X Fully Managed Modular Network Swtich
NETGEAR 12 Empty Slot Modular Stackable Managed Switch with 8-port 10G and 2-port 40G expansion cards
NETGEAR M4350-24F4V Fully Managed Switch (XSM4328FV) 24xSFP+ and 4xSFP28 25G
NETGEAR M4350-24F4V Fully Managed Switch (XSM4328FV) 24xSFP+ and 4xSFP28 25G
NETGEAR M4350-24F4V Fully Managed Switch (XSM4328FV) 24xSFP+ and 4xSFP28 25G
Netgear XS512EM 12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch with 2 SFP+ Combo Ports
Netgear XS512EM 12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch with 2 SFP+ Combo Ports
Netgear XS512EM 12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch with 2 SFP+ Combo Ports
Netgear MS510TXUP 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
Netgear MS510TXUP 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
Netgear MS510TXUP 8-Port Multi-Gigabit/10G Ethernet Ultra60 PoE++ Smart Switch with 2 SFP+ Ports
Netgear Multi-Gigabit Ethernet Smart Switches (MS510TXM)
Netgear Multi-Gigabit Ethernet Smart Switches (MS510TXM)
NETGEAR 8-Port 10G Multi-Gigabit Ethernet Smart Switch (MS510TXM) - Managed, 8 x Multi-gig Ports, 2 x 10G SFP+, Optional Insight Cloud Management, Desktop or Rackmount
SpecificationsProduct DatasheetInstallation GuideUser Manual

Features

High Availability (HA)

Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency

Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ Interoperability

Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency

Enables or disables ports based on link state of different ports

Advanced IPv4/IPv6 security

Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

Specifications

Product Number

XSM4324FS

Hardware Specifications

12 Ports Copper 100M / 1G / 10G

12 Ports SFP+ 1G / 10G

1 Modular Bay with One (1) 250W Modular PSU included APS250W

480 Gps Switching Fabric

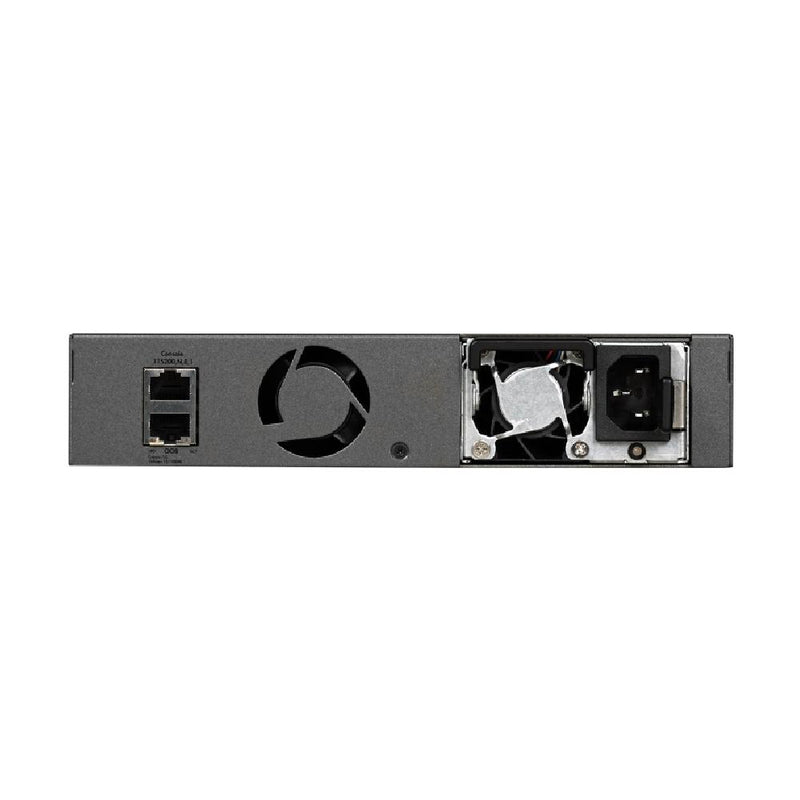

Fixed Fan Front-to-Back 36.9dB Management Options Ethernet: Out-of-band 1G port (Back)

Console: RJ45 RS232 (Back) Console: Mini-USB (Front)

Storage: USB (Front)

Single-pane-of-glass NMS300 management platform with mass-configuration support

Dual firmware image and configuration file for updates with minimum service interruption

Software Features

Model Description : Half-Width 24x10G Stackable Managed Switch with 12x10GBASE-T and 12xSFP+

Table Sizes

128K MAC 8k ARP / NDP

Up to 960 Gbps

Throughput up to 714 Mpps

Application Static Routing : 64v4 / 64v6 RIP: 512 OSPF: 512

Latency

<0.9µs 10G SFP+

<1.25µs 10G RJ45

IP Multicast : 1,024 IPv4 / 512 IPv6

Multicast IGMP Membership : 2k IPv4 / IPv6

M4300 Series features: : License-free L2 and Layer 3, Layer 4 with Policy Based Routing, RIP, VRRP, OSPF and PIM

VLANS

4k with 2K DHCP Server Leases, IPv4: 256 Pools / IPV6: 16 Pools

Mix-and-match Stackable Managed Switch Platform with nonstop forwarding and failover on all 1Gb to 10Gb models

Pre-configured for AV-over-IP L2 Multicast on all models 10G models (SDVoE Ready)

PoE+ Options (30W per port) with hot swap & redundant PSUs options

Ordering Number : XSM4324S

Acoustics : 36.9dB @ 25°C (77°F)

Power Consumption (Max) : 97 Watts

1G RJ45 Ports : -

10G RJ45 Ports : 12 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)

10G Fiber SFP+ Ports : 12 x SFP+ (1G and 10G speeds)

Power over Ethernet : -PoE Budget (Watts) : - Feature Set : Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)

Form Factor : Half-Width enabling one or two 10G switches in a single rack space for redundant top-of-rack 1 modular PSU

Warranty

Limited Lifetime Warranty
