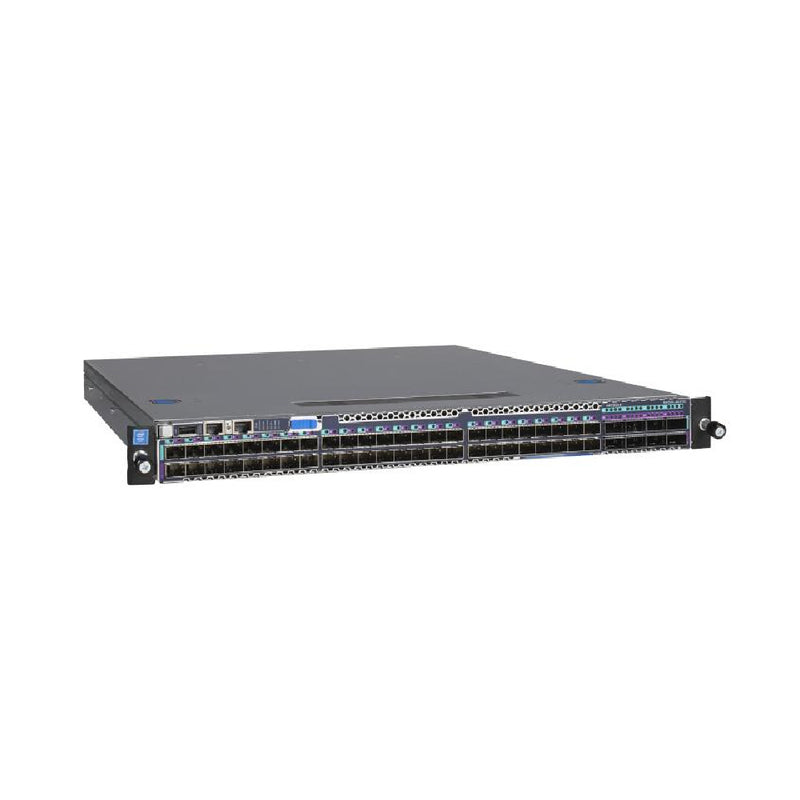

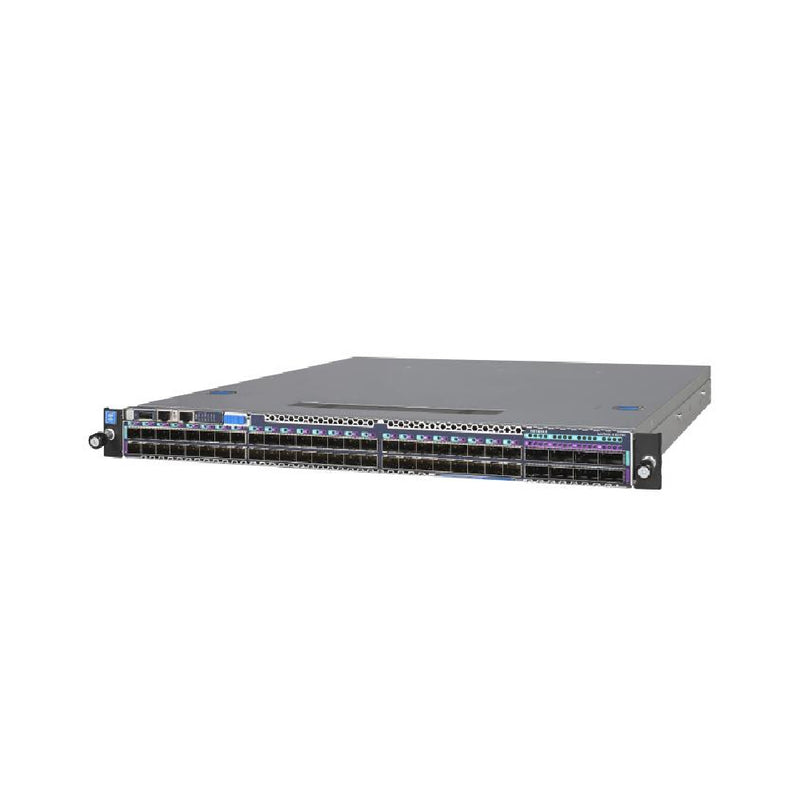

Netgear XSM4556 56 Ports 48x10G/25G SFP28 and 8x100G QSFP28 Managed Switch
SKU: XSM4556-100EUS
Features
Compliant with Major L3 Protocols
Fiber Ports
48 SFP+ Fiber ports have 1G/10G speeds & 2x 10Gb Copper
Stackable
Interface with other M4300 Series switches and manage as one unit Non-Blocking Fabric
Built-In Redundancy

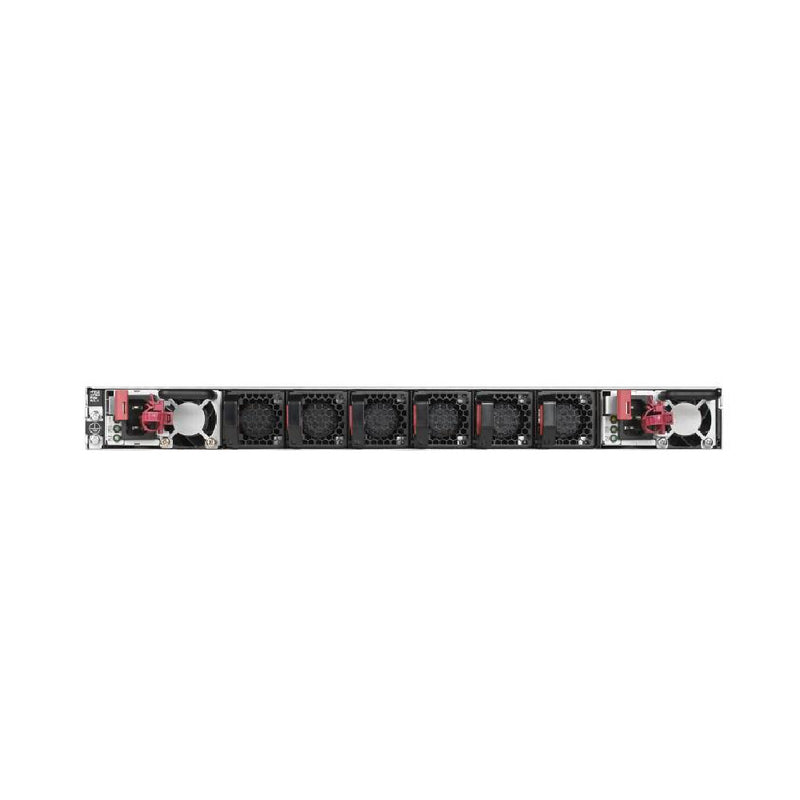

Two redundant, modular power supplies and six hot-swappable fan trays pre-installed for peace of mind
Industry-Standard Management
Stay on top of operations with: CLI, local GUI, SNMP, sFlow, RSPAN, single pane of glass NMS300
Secure Your Data
Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service protection
Dependable Operations
Enjoy high availability across virtual servers through load balancing and nonstop forwarding failover.
M4250 AV Line Switches
An entirely new series of switches developed and engineered for the growing AV over IP market.
Specifications
PHYSICAL SPECIFICATION
Dimensions: (WxDxH): 44 x 50.8 x 4.32 cm
Weight: 9.78 Kg (21.54lb
TECHNICAL SPECS
Model Description : M4500 Managed Switch with 48x10G/25G SFP28 and 8x100G QSFP28 ports
Ordering Number : XSM4556
Acoustics : 68.0dB @ 25°C (77°F) - the noise is reduced when the two PSUs connect to a power source
Power Consumption (Max) : 394 Watts
25G SFP28 Ports : 48 SFP28 ports (1x10G default mode, other modes can be 1x25G and 1x10G)
100G QSFP28 Ports : 8 QSFP28 ports (1x100G default mode, other modes can be 1x50G, 1x40G)
PSU and Fans : 2 modular Power Supply Units and 6 modular Fan Trays come pre-installed
Management : CLI only (local console, telnet port 1223 and SSH port 1234)
Management Ports : 1G Ethernet service port for out-of-band management (OOB, RJ45)
RS232 straight-through serial RJ45 for local management console
Form Factor : Full width 1U (508mm depth) with two mounting ears (front) and rail kits (back)
Management Options
Ethernet: Out-of-band 1G port (Back)
Console: RJ45 RS232 (Back)
Console: Mini-USB (Back)
Storage: USB (Front)
Single-pane-of-glass NMS300 management platform with mass-configuration support
Dual firmware image and configuration file for updates with minimum service interruption
WHAT'S IN THE BOX
Switch with two power supplies APS750W and six fan trays AFT402 already installed
Console cable with one DB9 female connector and one RJ-45 serial connector
Power cord(s)
Two mounting ears and screws for rack mounting (front)
One set of rail kits for rack mounting (back)
Installation guide
Warranty
Limited Lifetime Warranty
